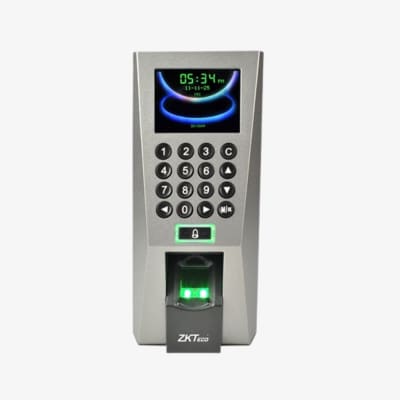

The ZKTeco F18 is a high-performance fingerprint access control and time attendance device designed for offices, factories, and commercial buildings. Equipped with ZK’s advanced biometric algorithm, a fast optical sensor, multiple connectivity options, and full access control features, it ensures secure, accurate, and efficient entry management. It supports up to 3000 fingerprints, 5000 cards, and 30,000 logs, making it ideal for medium to large organizations.
| Specification | Details |
|---|---|
| Fingerprint Capacity | 3,000 Templates |
| Card Capacity | 5,000 (Optional) |
| Transaction Capacity | 30,000 Records |
| Sensor Type | ZK Optical Sensor |
| Algorithm Version | ZK Finger VX9.0 & 10.0 |
| Communication | RS232/485, TCP/IP, USB Host |
| Access Control Interface | Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand | Input & Output Supported |
| Display | TFT LCD Color Screen |
| Interface Styles | Common, Matrix, Magic |
| Standard Features | Webserver, Anti-passback |
| Optional Features | ID Card, Mifare Card |
| Power Supply | 12V DC, 3A |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% – 80% |
| Dimensions | 80 × 183 × 42 mm |
Description
The ZKTeco F18 Fingerprint Access Control & Time Attendance Terminal is one of the most advanced and reliable biometric access control and time attendance terminals designed for modern offices, factories, schools, commercial buildings and secure environments. Built with ZKTeco’s highly accurate ZK Fingerprint Sensor and the powerful Fingerprint Algorithm Ver. 10, the F18 ensures fast, precise, and error-free authentication every time. It recognizes a user in less than one second, even in high-traffic entry points, making it suitable for busy workplaces in Bangladesh.
This device is engineered to operate both as a standalone unit and as part of a larger access control system. With built-in TCP/IP, RS485, USB-host, Wiegand input/output, and relay support, the ZKTeco F18 integrates effortlessly with external door locks, alarms, exit buttons, magnetic door sensors, and third-party access control panels. Whether you use it independently or connect it to a centralized security system, the F18 is designed to deliver maximum flexibility.
The 3.5-inch TFT color display with an intuitive graphical interface ensures a user-friendly setup and seamless device management. You can perform all operations directly from the device keypad no computer is needed for basic programming. The interface visually guides users during fingerprint placement, improving accuracy and reducing failed attempts.
With a storage capacity of 3,000 fingerprint templates, 5,000 optional card users, and 30,000 log transactions, the F18 is ideal for medium to large organizations. Its internal proximity or Mifare card module provides dual-factor authentication, adding another layer of security for high-risk areas.
Designed for durability, ZKTeco F18 includes a tamper switch, which triggers an alarm if someone tries to force or remove the device. The machine reliably operates under various environmental conditions, making it suitable for both indoor and semi-indoor use. From attendance tracking to door access restriction, the ZKTeco F18 combines high performance, longevity, and modern security features into one powerful machine.
If you need a dependable, secure, and high-speed biometric access control system at an affordable cost in Bangladesh, the ZKTeco F18 remains one of the top preferred choices for corporate offices, factories, schools, warehouses, shops, and commercial facilities.
1. How many fingerprints can the ZKTeco F18 store?
It can store up to 3000 fingerprint templates.
2. Does it support card access?
Yes, the F18 supports RFID and optionally Mifare cards (up to 5000 users).
3. Can it work without a computer?
Yes. All setup and programming can be done directly on the device using the keypad and display.
4. What communication options are available?
It supports TCP/IP, RS232/485, and USB-Host, making it easy to connect to any network.
5. Is the F18 suitable for attendance tracking?
Yes, it's widely used for employee attendance in offices, factories, and schools.
6. Does it support electric locks?
Yes, it has built-in relay outputs to control electric locks, door sensors, exit buttons, and alarms.
7. Can the device transfer data via USB?
Yes, you can back up data and transfer it using a USB flash drive.
8. Does it show fingerprint images on the screen?
Yes, the TFT display shows the fingerprint image to guide users for better scanning accuracy.
9. Does it support third-party access control panels?
Yes, it has Wiegand input/output for integration.
10. What is the typical use case for F18?
Access control + attendance management for offices, industrial plants, schools, shops, and government buildings.
