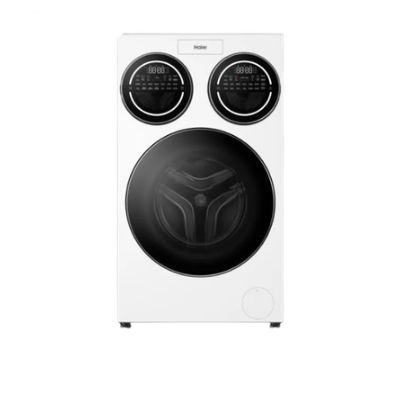

The Haier HW140-BD14697WU1 is an advanced 12+1+1 KG Multiwash Washing Machine featuring three separate drum zones for flexible laundry management. It combines a 12 KG main drum with two 1 KG side drums, allowing different types of garments to be washed separately. The machine comes with 3 Chamber Smart Dosing, AI Wash, Direct Drive Inverter Motor, UV Sterilization, Stain Wash, Wi-Fi Operation, and Haier Smart App Connectivity. Its multi-drum design makes it suitable for washing everyday clothes, delicate items, socks, underwear, and other specialized loads separately.
| Category | Specification | Details |
|---|---|---|
| Basic Information | Type | Front Loading Fully Automatic |
| Basic Information | Model Name | HW140-BD14697WU1 |
| Basic Information | Total Washing Capacity | 14 KG (12+1+1 KG) |
| Multi-Drum | Lower/Main Drum Capacity | 12 KG |
| Multi-Drum | Left Drum Capacity | 1 KG |
| Multi-Drum | Right Drum Capacity | 1 KG |
| Multi-Drum | 3 Drum Zoning | Yes |
| Features | Multi-Wash | Yes |
| Features | UV Sterilization | Yes |
| Features | Stain Wash | Yes |
| Features | 3 Chamber Smart Dosing | Yes |
| Features | AI Wash | Yes |
| Features | Auto Dosing | Yes |
| Features | Detergent Type | Normal Detergent + Softener + Underwear Detergent |
| Features | DM Motor Powerful Wash | Yes |
| Appearance | Color | Snow White |
| Appearance | Cabinet | Oceanus Wave Cabinet |
| Motor & Performance | Motor Type | Direct Motion / Direct Drive |
| Motor & Performance | Motor Technology | Inverter |
| Motor & Performance | Spin Speed Settings | 0 / 400 / 600 / 800 / 1000 / 1200 / 1400 RPM |
| Drum | Drum Design | Pillow Shape Drum |
| Drum | Drum Material | Stainless Steel |
| Drum | Drum Technology | Seamless Welding Technology |
| Drum | Small Drum Size | 216 mm |
| Drum | Main Drum Size | 525 mm |
| Smart Connectivity | Wi-Fi Operation | Yes |
| Smart Connectivity | Haier Smart App Connectivity | Yes |
| Door | Door Type | Softfall Hydraulic Integrated Black Glass |
| User Interface | Display | Full Digital Display |
| User Interface | Control Method | Touch Control |
| Foot & Stability | Height Adjustment | Height Adjustable Foot |
| Foot & Stability | Shock Absorption | Shock Absorption Foot |
| Anti-Bacterial Technology | Anti-Bacterial Drum | Yes |
| Anti-Bacterial Technology | Anti-Bacterial Gasket | Yes |
| Anti-Bacterial Technology | Anti-Bacterial Dispenser | Yes |
| Anti-Bacterial Technology | Dual Spray | Yes |
| Anti-Bacterial Technology | Drum Clean Program | Yes |
| Operation | Wide Voltage Operation | Yes |
| Operation | Near Zero Water Pressure Operation | Yes |
| Left Drum Programs | Programs | Smart Wash, Quick, Hygiene, Baby Care, Towel, Cotton, Remote, Hijab, Unlined Underwear, Lace Underwear, Sports Underwear, Spin, Rinse+Spin, Drum Clean |
| Right Drum Programs | Programs | Smart Wash, Quick, Baby Care, Socks, Cotton, Remote, Spin, Rinse+Spin, Drum Clean |
| Main Drum Programs | Programs | Smart Wash, Quick, Wool, Scent+, Textile, Socks, Cotton, Remote, Spin, Rinse+Spin, Drum Clean |
| Physical Specifications | Net Weight | 114 KG |
| Physical Specifications | Gross Weight | 124 KG |
| Physical Specifications | Net Dimension (W × D × H) | 600 × 570 × 1070 mm |
The Haier HW140-BD14697WU1 Multiwash Washing Machine features a unique 12+1+1 KG three-drum configuration. The main 12 KG drum is supported by two separate 1 KG drums, providing a total washing capacity of 14 KG. This arrangement allows different categories of clothing to be handled separately.
The 3 Drum Zoning design gives users dedicated washing spaces for different laundry requirements. The 12 KG main drum can handle larger loads, while the 1 KG left and right drums are suitable for smaller or specialized items such as underwear, socks, and delicate garments.
With the Multi-Wash function, multiple laundry zones can be managed within the same appliance. This provides greater flexibility when different types of clothing require separate washing cycles.
The machine uses a Direct Motion / Direct Drive Inverter Motor designed for powerful and efficient washing operation. It supports selectable spin speeds from 0 to 1400 RPM, allowing users to choose an appropriate spin setting for different types of laundry.
The AI Wash system provides intelligent washing functionality, while the 3 Chamber Smart Dosing system is designed to manage different laundry-care liquids. The dedicated chambers support normal detergent, softener, and underwear detergent, providing greater flexibility for different washing needs.
The HW140-BD14697WU1 includes UV Sterilization and Stain Wash functions. These features provide additional options when dealing with hygiene-focused laundry or garments with stubborn stains.
Each drum zone has its own selection of programs. The left drum includes options such as Hygiene, Baby Care, Towel, Hijab, Unlined Underwear, Lace Underwear, and Sports Underwear. The right drum provides programs for Socks, Baby Care, Cotton, and other everyday items. The main drum supports Wool, Scent+, Textile, Socks, Cotton, and other programs.
The washing machine supports Wi-Fi Operation and Haier Smart App Connectivity. This allows the appliance to integrate with Haier's smart-home ecosystem and provides connected operation through compatible app features.
The machine features Anti-Bacterial Drum, Anti-Bacterial Gasket, and Anti-Bacterial Dispenser technology. It also includes Dual Spray and a dedicated Drum Clean Program to support regular appliance maintenance.
1. What is the total capacity of the Haier HW140-BD14697WU1?
The machine has a total washing capacity of 14 KG, configured as 12+1+1 KG.
2. How many drums does this washing machine have?
It features three drum zones: one 12 KG main drum, one 1 KG left drum, and one 1 KG right drum.
3. What is the purpose of the two 1 KG drums?
The smaller drums can be used for specialized or smaller loads such as underwear, socks, baby clothing, lace underwear, and sports underwear, depending on the available programs.
4. Does the machine support Multi-Wash?
Yes. The HW140-BD14697WU1 features a dedicated Multi-Wash function.
5. What type of motor does it use?
It uses a Direct Motion / Direct Drive Inverter Motor.
6. What is the maximum spin speed?
The maximum spin speed is 1400 RPM. Available settings are 0, 400, 600, 800, 1000, 1200, and 1400 RPM.
7. Does this washing machine support AI Wash?
Yes. The machine features AI Wash and AI-based washing functionality.
