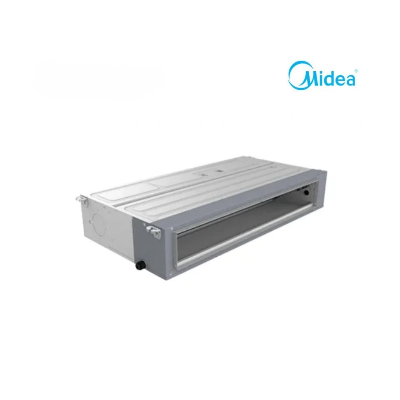

The Midea MHC30CR 2.5 Ton Duct Type Non-Inverter AC is a cooling-focused air-conditioning solution designed for commercial and large indoor spaces. With a 30,000 BTU/H cooling capacity, duct-type installation, rotary compressor, R410 refrigerant, and three-speed indoor airflow, it delivers practical air distribution through a concealed duct system. The unit supports both remote and wired controllers and operates on a 220–240V single-phase power supply.
| Brand | Midea |
|---|---|
| Model | MHC30CR |
| Indoor Model | MHC-30CRN1 |
| Outdoor Model | MHC-30CRN1 |
| AC Type | Duct Type |
| Technology | On-Off Non-Inverter |
| Operation | Cooling Only |
| Power Supply | 220–240V, 1Ph, 50Hz |
| Cooling Capacity | 30,000 BTU/H |
|---|---|
| Standard Current | 17 A |
| Standard Input | 3560 W |
| Rated Current (Max) | 20.7 A |
| Rated Input (Max) | 4500 W |
| EER | 2.75 W/W |
| EER (BTU/Hr)/W | 8.43 |
| SEER | N/A |
| Star Rating | 3 Star |
| Heating Capacity | N/A |
|---|---|
| Heating Operation | Not Available |
| Refrigerant | R410 |
|---|---|
| Refrigerant Amount | 1.5 kg |
| Compressor Type | Rotary |
| Compressor Brand | GMCC/LAMDA |
| Suction Pressure | 4.2 MPa |
| Discharge Pressure | 1.5 MPa |
| Controller Type | Remote + Wired Controller |
|---|---|
| Operation Temperature | 16–32°C |
| Liquid Pipe Size | 3/8 Inch |
| Gas Pipe Size | 5/8 Inch |
| Drain Pipe Size | OD32 |
| Air Suction Mouth | 800 × 250 mm |
| Air Discharge Mouth | 635 × 202 mm |
| Indoor Airflow (High/Medium/Low) | 1300 / 1250 / 1150 m³/h |
|---|---|
| Indoor Noise Level (High/Medium/Low) | 47 / 44 / 38 dB |
| Outdoor Noise Level | 59 dB |
| Indoor Net Weight | 32.3 kg |
|---|---|
| Indoor Gross Weight | 36.9 kg |
| Indoor Body Size | 890 × 735 × 290 mm |
| Indoor Packing Size | 1070 × 800 × 360 mm |
| Outdoor Net Weight | 55 kg |
| Outdoor Gross Weight | 60.8 kg |
| Outdoor Body Size | 920 × 360 × 710 mm |
| Outdoor Packing Size | 985 × 435 × 760 mm |
| Compressor Warranty | 5 Years |
|---|---|
| Spare Parts Warranty | 2 Years |
| Free Service Warranty | 1 Year |
The Midea MHC30CR 2.5 Ton Duct Type AC delivers a cooling capacity of 30,000 BTU/H, making it suitable for large indoor areas that require substantial cooling performance.
Unlike conventional wall-mounted split air conditioners, its duct-type configuration allows conditioned air to be distributed through connected ductwork. This makes it suitable for spaces where a concealed or centralized-looking air distribution system is preferred.
The duct-type indoor unit is designed to connect with an appropriate duct system, allowing cooled air to be distributed to selected areas. This configuration can help maintain a cleaner interior appearance because the main indoor unit can be integrated into a ceiling or service area.
The MHC30CR uses On-Off non-inverter technology. The compressor operates according to the cooling demand rather than continuously adjusting its speed like an inverter system.
This straightforward operating design makes the AC suitable for applications where a conventional cooling system is preferred.
With a rated 30,000 BTU/H cooling capacity, the Midea MHC30CR is designed to provide substantial cooling for larger indoor environments.
Its cooling-only configuration focuses on air conditioning during warmer conditions and does not include a heating function.
The indoor unit provides airflow of up to 1300 m³/h, with three selectable airflow levels:
This provides users with different airflow settings according to comfort and room requirements.
The system uses a rotary compressor from GMCC/LAMDA and operates with R410 refrigerant. The listed refrigerant charge is 1.5 kg.
The compressor and refrigerant system work together to provide the cooling performance required for the 30,000 BTU/H capacity.
The MHC30CR supports both a remote controller and wired controller, providing flexibility for different installation environments.
A wired controller can be useful for fixed commercial installations, while the remote provides convenient day-to-day operation.
The air conditioner carries a 3-star rating and has a listed EER of 2.75 W/W. Its standard input is 3560W, while the maximum rated input is 4500W.
Actual power consumption can vary depending on operating conditions, temperature settings, installation, and usage patterns.
The indoor noise level is listed at 47 dB on high, 44 dB on medium, and 38 dB on low. The outdoor unit has a listed noise level of 59 dB.
The multiple indoor fan speeds allow users to select an airflow level according to the requirements of the space.
The Midea MHC30CR operates on a 220–240V, single-phase, 50Hz power supply, making it compatible with standard electrical systems designed for this specification.
1. What is the cooling capacity of the Midea MHC30CR?
The Midea MHC30CR has a cooling capacity of 30,000 BTU/H, equivalent to approximately 2.5 tons of cooling.
2. Is the Midea MHC30CR an inverter AC?
No. It uses On-Off non-inverter technology, where the compressor operates according to the cooling requirement.
3. Is the MHC30CR suitable for heating?
No. This is a cooling-only AC and does not have a heating function.
4. What type of AC is the Midea MHC30CR?
It is a duct-type air conditioner, designed to distribute conditioned air through a suitable duct system.
5. What refrigerant does the Midea MHC30CR use?
The AC uses R410 refrigerant, with a listed refrigerant amount of 1.5 kg.
6. What type of compressor does it use?
The Midea MHC30CR uses a rotary compressor, with the listed compressor brand being GMCC/LAMDA.
7. What is the indoor airflow capacity?
The indoor airflow is 1300 m³/h at high speed, 1250 m³/h at medium speed, and 1150 m³/h at low speed.
