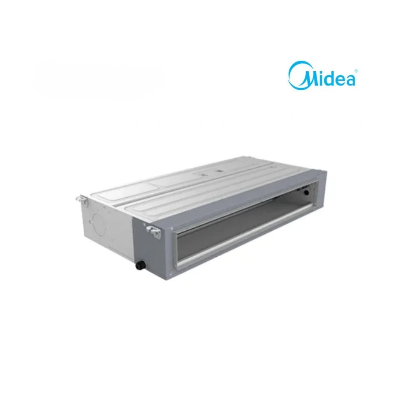

The Midea MHC36CR 3 Ton Duct Type Non-Inverter AC is a high-capacity cooling solution designed for large commercial and indoor spaces. With 36,000 BTU/H cooling capacity, three-speed airflow up to 2200 m³/h, a rotary compressor, R410 refrigerant, and duct-type installation, it provides practical and centralized air distribution. The system supports both remote and wired controllers and operates on a 380–410V three-phase power supply.
| Brand | Midea |
|---|---|
| Model | MHC36CR |
| Indoor Model | MHC-36CRNEUC |
| Outdoor Model | MHC-36CRNEUC |
| AC Type | Duct Type |
| Technology | On-Off Non-Inverter |
| Operation | Cooling Only |
| Power Supply | 380–410V, 3Ph, 50Hz |
| Cooling Capacity | 36,000 BTU/H |
|---|---|
| Standard Current | 8.2 A |
| Standard Input | 4000 W |
| Rated Current (Max) | 11.7 A |
| Rated Input (Max) | 5350 W |
| EER | 3.1 W/W |
| EER (BTU/Hr)/W | 9.00 |
| SEER | N/A |
| Star Rating | 3 Star |
| Heating Capacity | N/A |
|---|---|
| Heating Operation | Not Available |
| Refrigerant | R410 |
|---|---|
| Refrigerant Amount | 2.4 kg |
| Compressor Type | Rotary |
| Compressor Brand | LAMDA |
| Suction Pressure | 4.2 MPa |
| Discharge Pressure | 1.5 MPa |
| Controller Type | Remote + Wired Controller |
|---|---|
| Operation Temperature | 16–32°C |
| Liquid Pipe Size | 3/8 Inch |
| Gas Pipe Size | 5/8 Inch |
| Drain Pipe Size | OD25.4 |
| Air Suction Mouth | 1278 × 205 mm |
| Air Discharge Mouth | 1213 × 177 mm |
| Indoor Airflow (High/Medium/Low) | 2200 / 1900 / 1500 m³/h |
|---|---|
| Indoor Noise Level | 57 / 54 / 52 / 49 dB |
| Outdoor Noise Level | 59.5 dB |
| Indoor Net Weight | 39.5 kg |
|---|---|
| Indoor Gross Weight | 46.5 kg |
| Indoor Body Size | 1400 × 700 × 245 mm |
| Indoor Packing Size | 1630 × 830 × 300 mm |
| Outdoor Net Weight | 68.2 kg |
| Outdoor Gross Weight | 78.7 kg |
| Outdoor Body Size | 980 × 410 × 1210 mm |
| Outdoor Packing Size | 1032 × 470 × 1280 mm |
| Compressor Warranty | 5 Years |
|---|---|
| Spare Parts Warranty | 2 Years |
| Free Service Warranty | 1 Year |
The Midea MHC36CR 3 Ton Duct Type AC provides 36,000 BTU/H cooling capacity, making it suitable for large indoor areas that require substantial cooling performance. Its duct-type configuration allows conditioned air to be distributed through a properly designed duct network.
This makes the system suitable for commercial and institutional environments where a centralized or concealed air-conditioning arrangement is preferred.
The MHC36CR uses a duct-type indoor unit that can be integrated with an appropriate ductwork system. Instead of relying on a single wall-mounted outlet, the cooled air can be distributed through connected ducts and outlets.
This design can help maintain a cleaner interior appearance while supporting cooling across larger spaces.
The air conditioner uses On-Off technology rather than inverter-based variable-speed operation. The compressor cycles according to the cooling requirement, providing a conventional approach to air-conditioning operation.
This makes the MHC36CR suitable for installations where a traditional non-inverter ducted cooling system is preferred.
With a rated cooling capacity of 36,000 BTU/H, the MHC36CR is designed for substantial cooling requirements. The cooling-only configuration focuses on maintaining comfortable indoor temperatures during warm conditions.
The actual cooling coverage depends on factors such as room dimensions, insulation, occupancy, heat-generating equipment, sunlight exposure, ceiling height, and duct design.
The indoor unit provides three main airflow levels:
The multiple airflow settings allow users to select an appropriate airflow level based on comfort and space requirements.
The Midea MHC36CR uses a rotary compressor from LAMDA and operates with R410 refrigerant. The specified refrigerant charge is 2.4 kg.
The refrigeration system is designed to provide the cooling performance required by the 36,000 BTU/H capacity.
The MHC36CR supports both remote and wired controllers, providing flexibility during installation and everyday operation.
The wired controller can be useful for fixed commercial installations, while the remote controller offers convenient adjustment of operating settings.
1. What is the cooling capacity of the Midea MHC36CR?
The Midea MHC36CR has a 36,000 BTU/H cooling capacity, equivalent to approximately 3 tons.
2. Is the Midea MHC36CR an inverter AC?
No. It uses On-Off non-inverter technology.
3. Does the MHC36CR provide heating?
No. The MHC36CR is a cooling-only air conditioner and does not have a heating function.
4. What type of air conditioner is the Midea MHC36CR?
It is a duct-type AC designed to distribute cooled air through a suitable ductwork system.
5. What refrigerant does the Midea MHC36CR use?
The AC uses R410 refrigerant, with a specified refrigerant amount of 2.4 kg.
6. What type of compressor does the MHC36CR use?
It uses a rotary compressor, with LAMDA listed as the compressor brand.
7. What is the indoor airflow of this 3 Ton duct AC?
The indoor airflow is 2200 m³/h at high, 1900 m³/h at medium, and 1500 m³/h at low speed.
