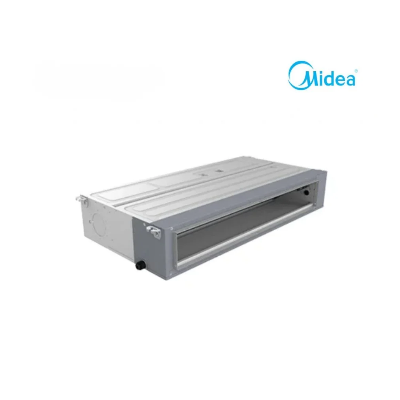

The Midea MHC48CR 4 Ton Duct Type Non Inverter AC is a high-capacity cooling solution designed for large commercial and institutional spaces. It delivers 48,000 BTU/H cooling capacity through a concealed duct-type installation and uses On-Off cooling technology with a rotary compressor and R410 refrigerant. With 2200 m³/h maximum indoor airflow, remote and wired controller support, and a 3-star efficiency rating, this AC is suitable for applications requiring powerful and consistent cooling.
| Specification | Details |
|---|---|
| Indoor Model | EHC-48CRNEUC |
| Outdoor Model | EHC-48CRNEUC |
| AC Type | Duct Type |
| Technology | On-Off |
| Operation | Cooling Only |
| Power Supply | 380–410V, 3Ph, 50Hz |
| Specification | Details |
|---|---|
| Cooling Capacity | 48,000 BTU/H |
| Standard Current | 8.7 A |
| Standard Input | 5150 W |
| Rated Current (Max Current) | 12 A |
| Rated Input (Max Input) | 6100 W |
| EER | 2.82 W/W |
| EER | 9.32 BTU/Hr/W |
| SEER | N/A |
| Star Rating | 3 Star |
| Specification | Details |
|---|---|
| Heating Capacity | N/A |
| Standard Current | N/A |
| Standard Input | N/A |
| Rated Current (Max Current) | N/A |
| Rated Input (Max Input) | N/A |
| EER | N/A |
| EER (BTU/Hr)/W | N/A |
| SEER | N/A |
| Star Rating | N/A |
| Specification | Details |
|---|---|
| Refrigerant Type | R410 |
| Refrigerant Charge | 3 KG |
| Compressor Type | Rotary |
| Compressor Brand | LAMDA |
| Suction Pressure | 4.2 MPa |
| Discharge Pressure | 1.5 MPa |
| Specification | Details |
|---|---|
| Controller Type | Remote + Wired |
| Operating Temperature | 16–32°C |
| Liquid Pipe Size | 3/8 Inch |
| Gas Pipe Size | 5/8 Inch |
| Drain Pipe Size | OD 25.4 |
| Air Suction Mouth | 1278 × 205 mm |
| Air Discharge Mouth | 1213 × 177 mm |
| Specification | Details |
|---|---|
| Indoor Airflow (High/Medium/Low) | 2200 / 1900 / 1500 m³/h |
| Indoor Noise Level | 57 / 54 / 52 / 49 dB |
| Outdoor Noise Level | 59.5 dB |
| Specification | Details |
|---|---|
| Indoor Net Weight | 39.5 KG |
| Indoor Gross Weight | 46.5 KG |
| Indoor Body Size | 1400 × 700 × 245 mm |
| Indoor Packing Size | 1630 × 830 × 300 mm |
| Outdoor Net Weight | 90.2 KG |
| Outdoor Gross Weight | 100.7 KG |
| Outdoor Body Size | 980 × 410 × 1210 mm |
| Outdoor Packing Size | 1032 × 470 × 1280 mm |
| Warranty Type | Coverage |
|---|---|
| Compressor Warranty | 5 Years |
| Spare Parts Warranty | 2 Years |
| Free Service Warranty | 1 Year |
The Midea MHC48CR 4 Ton Duct Type AC is built for environments that require a high level of cooling performance. With a 48,000 BTU/H cooling capacity, it can deliver strong cooling through a duct-based air distribution system, making it suitable for larger commercial, office, institutional, and other indoor spaces.
The duct-type configuration allows the indoor unit to be integrated into a suitable ceiling or duct network, helping distribute conditioned air throughout the required area while keeping the main indoor unit concealed.
Unlike conventional wall-mounted air conditioners, the MHC48CR uses a duct-type indoor unit. This design is particularly useful for projects where centralized air distribution and a clean interior appearance are important.
Air can be supplied through connected ductwork and discharged through suitable outlets according to the installation layout. This makes the system practical for commercial buildings, offices, showrooms, educational facilities, and other large spaces.
The MHC48CR operates with On-Off technology, providing straightforward cooling operation. It is designed specifically for cooling rather than heating, making it appropriate for environments where year-round heating functionality is not required.
The indoor unit provides airflow of up to 2200 m³/h, with selectable airflow levels of 2200 / 1900 / 1500 m³/h. This high airflow capability helps move cooled air effectively through the connected duct system.
The airflow options also provide flexibility for adjusting the cooling delivery according to operating requirements.
The AC is equipped with a rotary compressor and uses R410 refrigerant. The system has a listed refrigerant charge of 3 KG, supporting its high-capacity cooling configuration.
The Midea MHC48CR supports both remote and wired controller operation. This gives users flexibility when controlling the system, particularly in commercial installations where a wired controller can be positioned at a convenient operating location.
The unit is designed for a 380–410V, 3-phase, 50Hz power supply, making it appropriate for installations with compatible commercial electrical infrastructure.
The system uses 3/8-inch liquid piping and 5/8-inch gas piping, along with an OD 25.4 drain pipe. Its specified air suction and discharge openings are designed to work with a suitable duct installation arrangement.
Because duct-type AC installation depends on building structure, duct layout, electrical requirements, and airflow planning, professional installation is recommended.
The Midea MHC48CR comes with 5 years of compressor warranty, 2 years of spare parts warranty, and 1 year of free service warranty under the stated domestic warranty terms. This provides additional support for customers investing in a large-capacity commercial cooling system.
What is the cooling capacity of the Midea MHC48CR?
The Midea MHC48CR has a cooling capacity of 48,000 BTU/H, equivalent to approximately 4 tons of cooling capacity.
Is the Midea MHC48CR an inverter AC?
No. The MHC48CR uses On-Off technology, so it is a non-inverter duct-type air conditioner.
Does this AC provide heating?
No. The MHC48CR is designed for cooling-only operation and does not have a heating function.
What type of refrigerant does the MHC48CR use?
The AC uses R410 refrigerant, with a listed refrigerant charge of 3 KG.
What type of compressor is used?
The Midea MHC48CR uses a rotary compressor, with LAMDA listed as the compressor brand.
What is the maximum indoor airflow?
The maximum listed indoor airflow is 2200 m³/h. The specified airflow levels are 2200, 1900, and 1500 m³/h.
What type of controller is supported?
The MHC48CR supports both remote and wired controllers.
