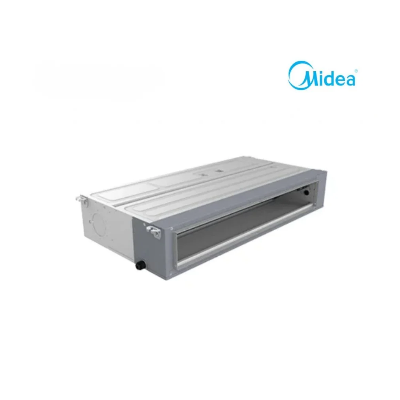

The Midea MHC60CR 5 Ton Duct Type Non Inverter AC is a high-capacity commercial cooling solution designed for large indoor spaces that require powerful and consistent air conditioning. With 60,000 BTU/H cooling capacity, On-Off technology, a rotary compressor, and R410 refrigerant, this cooling-only AC delivers strong performance through a ducted air distribution system. It supports 2200 m³/h maximum indoor airflow and comes with both remote and wired controller options.
| Specification | Details |
|---|---|
| Indoor Model | MHC-60CRHEUC |
| Outdoor Model | MHC-60CRHEUC |
| AC Type | Duct Type |
| Technology | On-Off |
| Operation | Cooling Only |
| Power Supply | 380–410V, 3Ph, 50Hz |
| Specification | Details |
|---|---|
| Cooling Capacity | 60,000 BTU/H |
| Standard Current | 10.5 A |
| Standard Input | 6500 W |
| Rated Current (Max Current) | 13 A |
| Rated Input (Max Input) | 8500 W |
| EER | 2.65 W/W |
| EER | 9.23 BTU/Hr/W |
| SEER | N/A |
| Star Rating | 2 Star |
| Specification | Details |
|---|---|
| Heating Capacity | N/A |
| Standard Current | N/A |
| Standard Input | N/A |
| Rated Current (Max Current) | N/A |
| Rated Input (Max Input) | N/A |
| EER | N/A |
| EER (BTU/Hr)/W | N/A |
| SEER | N/A |
| Star Rating | N/A |
| Specification | Details |
|---|---|
| Refrigerant Type | R410 |
| Refrigerant Charge | 3.4 KG |
| Compressor Type | Rotary |
| Compressor Brand | LAMDA |
| Suction Pressure | 4.2 MPa |
| Discharge Pressure | 1.5 MPa |
| Specification | Details |
|---|---|
| Controller Type | Remote + Wired |
| Operating Temperature | 16–32°C |
| Liquid Pipe Size | 3/8 Inch |
| Gas Pipe Size | 5/8 Inch |
| Drain Pipe Size | OD 25.4 |
| Air Suction Mouth | 1278 × 205 mm |
| Air Discharge Mouth | 1213 × 177 mm |
| Specification | Details |
|---|---|
| Indoor Airflow (High/Medium/Low) | 2200 / 1900 / 1500 m³/h |
| Indoor Noise Level | 57 / 54 / 52 / 49 dB |
| Outdoor Noise Level | 59.5 dB |
| Specification | Details |
|---|---|
| Indoor Net Weight | 39.5 KG |
| Indoor Gross Weight | 46.5 KG |
| Indoor Body Size | 1400 × 700 × 245 mm |
| Indoor Packing Size | 1630 × 830 × 300 mm |
| Outdoor Net Weight | 94.2 KG |
| Outdoor Gross Weight | 104.8 KG |
| Outdoor Body Size | 980 × 410 × 1210 mm |
| Outdoor Packing Size | 1032 × 470 × 1280 mm |
| Warranty Type | Coverage |
|---|---|
| Compressor Warranty | 5 Years |
| Spare Parts Warranty | 2 Years |
| Free Service Warranty | 1 Year |
The Midea MHC60CR 5 Ton Duct Type AC is designed to provide powerful cooling for large commercial and institutional environments. Its 60,000 BTU/H cooling capacity makes it suitable for projects where a conventional wall-mounted AC may not provide the required cooling output.
The system is built around a duct-type indoor unit, allowing conditioned air to be distributed through a planned duct network. This configuration can provide a cleaner and more integrated appearance while supporting cooling across larger areas.
The MHC60CR is designed for ducted installation rather than direct wall-mounted airflow. The indoor unit can be connected to an appropriate duct system to distribute cool air through selected outlets.
This makes the AC a practical option for offices, showrooms, commercial establishments, conference areas, educational facilities, restaurants, and other large spaces where centralized air distribution is preferred.
The MHC60CR uses On-Off non-inverter technology and is designed specifically for cooling. The compressor operates according to the system's cooling demand rather than using variable-speed inverter operation.
For commercial projects where cooling-only functionality is required, this straightforward operating configuration can provide a practical air-conditioning solution.
The indoor unit provides airflow levels of 2200, 1900, and 1500 m³/h. The maximum airflow of 2200 m³/h helps move a substantial volume of conditioned air through the connected ductwork.
Multiple airflow levels provide flexibility when adjusting the system according to the requirements of the installation.
The Midea MHC60CR incorporates a rotary compressor from the listed LAMDA brand and operates with R410 refrigerant. The specified refrigerant charge is 3.4 KG.
The system has a listed standard input of 6500 W and a maximum rated input of 8500 W, with an EER of 2.65 W/W.
This 5-ton duct AC requires a 380–410V, 3-phase, 50Hz power supply. The three-phase configuration is suitable for compatible commercial electrical infrastructure.
Before installation, the electrical system should be checked to ensure that the available supply, protection devices, wiring, and other installation requirements are appropriate for the unit.
The MHC60CR supports remote and wired controller operation. This provides flexibility for commercial installations where users may prefer either conventional remote control or a fixed wired control arrangement.
The specified refrigerant piping consists of a 3/8-inch liquid pipe and 5/8-inch gas pipe. The unit also uses an OD 25.4 drain pipe.
Its listed air suction opening measures 1278 × 205 mm, while the air discharge opening measures 1213 × 177 mm, providing the connection dimensions needed for appropriate duct planning.
The MHC60CR is a cooling-only air conditioner, meaning it does not provide heating functionality. This makes it suitable for Bangladesh and other warm-climate applications where the primary requirement is effective cooling rather than heating.
What is the cooling capacity of the Midea MHC60CR?
The Midea MHC60CR provides 60,000 BTU/H, which is equivalent to approximately 5 tons of cooling capacity.
Is the MHC60CR an inverter AC?
No. The MHC60CR uses On-Off technology, making it a non-inverter duct-type air conditioner.
Does the Midea MHC60CR provide heating?
No. It is a cooling-only AC and does not include a heating function.
What refrigerant does the MHC60CR use?
The unit uses R410 refrigerant with a specified refrigerant charge of 3.4 KG.
What type of compressor does it have?
The Midea MHC60CR uses a rotary compressor, with LAMDA listed as the compressor brand.
How much airflow does the MHC60CR provide?
The indoor airflow levels are 2200 / 1900 / 1500 m³/h for high, medium, and low settings respectively.
What type of power supply is required?
The MHC60CR requires a 380–410V, 3-phase, 50Hz power supply.
