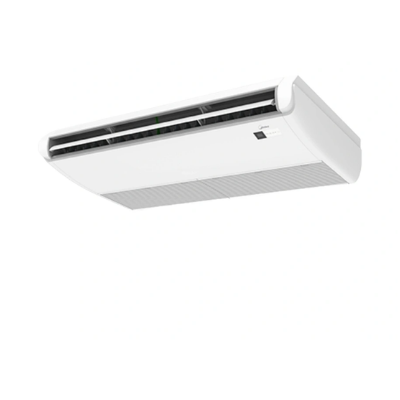

The Midea MUB36CR 3 Ton Ceiling Type Non Inverter AC is a high-capacity cooling solution designed for commercial and large indoor spaces. With 36,000 BTU/H cooling capacity, a ceiling-type indoor unit, and On-Off cooling technology, it provides powerful and practical air distribution. The system uses a rotary compressor with R410 refrigerant, offers up to 2000 m³/h indoor airflow, and supports remote control with a 380–410V three-phase power supply.
| Specification | Details |
|---|---|
| Indoor Model | MUB-36CRN |
| Outdoor Model | MUB-36CRN |
| AC Type | Ceiling Type |
| Technology | On-Off |
| Operation | Cooling Only |
| Power Supply | 380–410V, 3Ph, 50Hz |
| Specification | Details |
|---|---|
| Cooling Capacity | 36,000 BTU/H |
| Standard Current | 8.2 A |
| Standard Input | 4000 W |
| Rated Current (Max Current) | 11.7 A |
| Rated Input (Max Input) | 5350 W |
| EER | 3.1 W/W |
| EER | 9.00 BTU/Hr/W |
| SEER | N/A |
| Star Rating | 3 Star |
| Specification | Details |
|---|---|
| Heating Capacity | N/A |
| Standard Current | N/A |
| Standard Input | N/A |
| Rated Current (Max Current) | N/A |
| Rated Input (Max Input) | N/A |
| EER | N/A |
| EER (BTU/Hr)/W | N/A |
| SEER | N/A |
| Star Rating | N/A |
| Specification | Details |
|---|---|
| Refrigerant Type | R410 |
| Refrigerant Charge | 2.4 KG |
| Compressor Type | Rotary |
| Compressor Brand | LAMDA |
| Suction Pressure | 4.2 MPa |
| Discharge Pressure | 1.5 MPa |
| Specification | Details |
|---|---|
| Controller Type | Remote |
| Operating Temperature | 16–32°C |
| Liquid Pipe Size | 3/8 Inch |
| Gas Pipe Size | 3/4 Inch |
| Drain Pipe Size | OD 25.4 |
| Specification | Details |
|---|---|
| Indoor Airflow (High/Medium/Low) | 2000 / 1800 / 1250 m³/h |
| Indoor Noise Level | 52 / 47 / 44 dB |
| Outdoor Noise Level | 59.5 dB |
| Specification | Details |
|---|---|
| Indoor Net Weight | 43.46 KG |
| Indoor Gross Weight | 49.58 KG |
| Indoor Body Size | 1600 × 690 × 235 mm |
| Indoor Packing Size | 1680 × 770 × 325 mm |
| Outdoor Net Weight | 71.2 KG |
| Outdoor Gross Weight | 81.7 KG |
| Outdoor Body Size | 980 × 410 × 1210 mm |
| Outdoor Packing Size | 1032 × 470 × 1280 mm |
The Midea MUB36CR 3 Ton Ceiling Type AC is designed to provide strong cooling for commercial environments and other large indoor areas. With a 36,000 BTU/H cooling capacity, the unit can deliver the cooling performance required for spaces where standard residential wall-mounted air conditioners may not be sufficient.
Its ceiling-type configuration makes it particularly suitable for installations where efficient overhead air distribution and effective use of wall space are important.
The MUB36CR features a ceiling-type indoor unit designed to be installed in an overhead position. This configuration can provide a practical alternative to wall-mounted or ducted systems while allowing cooled air to circulate throughout the occupied area.
The ceiling-mounted format is well suited to offices, restaurants, retail spaces, showrooms, classrooms, halls, and other commercial environments where floor and wall space may be limited.
The Midea MUB36CR uses On-Off non-inverter technology and is designed for cooling-only operation. The compressor cycles according to the cooling requirement, providing a straightforward operating system for locations where heating functionality is not needed.
The unit has a listed 3-star rating and an EER of 3.1 W/W.
The indoor unit provides three airflow levels of 2000 / 1800 / 1250 m³/h. The maximum airflow of 2000 m³/h helps distribute cooled air effectively across the indoor environment.
Users can select the appropriate airflow level according to room conditions and cooling requirements.
The MUB36CR is equipped with a rotary compressor, with LAMDA listed as the compressor brand. It operates using R410 refrigerant with a specified charge of 2.4 KG.
The system has a standard power input of 4000 W and a maximum rated input of 5350 W, making it suitable for a compatible three-phase electrical installation.
The AC is designed for a 380–410V, 3-phase, 50Hz power supply. This electrical configuration makes the MUB36CR appropriate for commercial locations equipped with a suitable three-phase power system.
Before installation, the electrical infrastructure should be checked to ensure that it meets the unit's requirements.
The Midea MUB36CR comes with a remote controller, allowing users to adjust and manage the AC conveniently without needing to access the indoor unit directly.
The specified refrigerant piping consists of a 3/8-inch liquid-side pipe and a 3/4-inch gas-side pipe. The unit uses an OD 25.4 drain pipe for condensate drainage.
Correct refrigerant piping, drainage, and installation practices are important for achieving reliable system performance.
The specified operating temperature range is 16–32°C. This makes the MUB36CR suitable for typical cooling requirements in warm commercial and indoor environments.
What is the cooling capacity of the Midea MUB36CR?
The Midea MUB36CR has a cooling capacity of 36,000 BTU/H, equivalent to approximately 3 tons of cooling.
Is the MUB36CR an inverter AC?
No. The MUB36CR uses On-Off technology, making it a non-inverter air conditioner.
Is the MUB36CR suitable for cooling only?
Yes. It is designed for cooling-only operation and does not provide a heating function.
What type of compressor does the MUB36CR use?
The AC uses a rotary compressor, with LAMDA specified as the compressor brand.
What refrigerant is used in this AC?
The MUB36CR uses R410 refrigerant and has a listed refrigerant charge of 2.4 KG.
What is the airflow capacity?
The indoor airflow levels are 2000 / 1800 / 1250 m³/h for high, medium, and low settings.
What type of power supply is required?
The Midea MUB36CR requires a 380–410V, 3-phase, 50Hz power supply.
