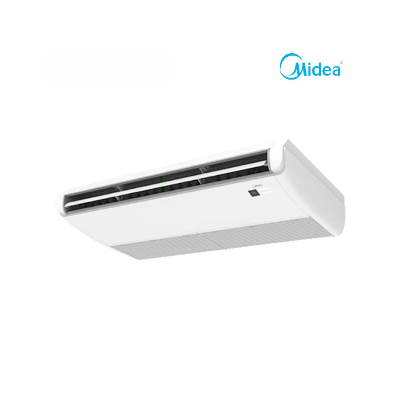

The Midea MUB-60CRN1 5 Ton Ceiling Type Non-Inverter AC is a high-capacity cooling solution designed for large commercial, institutional, and spacious indoor environments. With a 60,000 BTU/H cooling capacity, ceiling-type installation, and On-Off cooling technology, it delivers powerful air conditioning while making efficient use of wall and floor space. The system features a rotary compressor, R410 refrigerant, up to 2000 m³/h indoor airflow, remote control operation, and a 380–410V three-phase power supply.
| Specification | Details |
|---|---|
| Indoor Model | MUB-60CRN |
| Outdoor Model | MUB-60CRN |
| AC Type | Ceiling Type |
| Technology | On-Off |
| Operation | Cooling Only |
| Color | White |
| Power Supply | 380–410V, 3Ph, 50Hz |
| Specification | Details |
|---|---|
| Cooling Capacity | 60,000 BTU/H |
| Standard Current | 10.5 A |
| Standard Input | 6500 W |
| Rated Current (Max Current) | 13 A |
| Rated Input (Max Input) | 8500 W |
| EER | 2.65 W/W |
| EER | 9.23 BTU/Hr/W |
| SEER | N/A |
| Star Rating | 3 Star |
| Specification | Details |
|---|---|
| Heating Capacity | N/A |
| Standard Current | N/A |
| Standard Input | N/A |
| Rated Current (Max Current) | N/A |
| Rated Input (Max Input) | N/A |
| EER | N/A |
| EER (BTU/Hr)/W | N/A |
| SEER | N/A |
| Star Rating | N/A |
| Specification | Details |
|---|---|
| Refrigerant Type | R410 |
| Refrigerant Charge | 3.4 KG |
| Compressor Type | Rotary |
| Compressor Brand | LAMDA |
| Suction Pressure | 4.2 MPa |
| Discharge Pressure | 1.5 MPa |
| Specification | Details |
|---|---|
| Controller Type | Remote |
| Operating Temperature | 16–32°C |
| Liquid Pipe Size | 3/8 Inch |
| Gas Pipe Size | 3/4 Inch |
| Drain Pipe Size | OD 25.4 |
| Specification | Details |
|---|---|
| Indoor Airflow (High/Medium/Low) | 2000 / 1800 / 1250 m³/h |
| Indoor Noise Level | 52 / 47 / 44 dB |
| Outdoor Noise Level | 59.5 dB |
| Specification | Details |
|---|---|
| Indoor Net Weight | 43.46 KG |
| Indoor Gross Weight | 49.58 KG |
| Indoor Body Size | 1600 × 690 × 235 mm |
| Indoor Packing Size | 1680 × 770 × 325 mm |
| Outdoor Net Weight | 96.2 KG |
| Outdoor Gross Weight | 106.8 KG |
| Outdoor Body Size | 980 × 410 × 1210 mm |
| Outdoor Packing Size | 1032 × 470 × 1280 mm |
The Midea MUB-60CRN1 5 Ton Ceiling Type AC is designed to provide powerful cooling for large indoor environments. With a 60,000 BTU/H cooling capacity, this model is suitable for commercial and institutional applications where a high level of cooling output is required.
Its 5-ton capacity allows the system to handle demanding cooling requirements when correctly matched with the size, heat load, occupancy, and layout of the space.
The MUB-60CRN1 features a ceiling-type indoor unit, providing an alternative to conventional wall-mounted AC installation. Ceiling installation can help preserve wall space and provide a practical overhead cooling arrangement.
The white finish gives the indoor unit a clean and neutral appearance that can integrate well into different commercial interiors.
This model uses On-Off technology rather than variable-speed inverter operation. The system is designed exclusively for cooling, making it suitable for locations where heating is not required.
The MUB-60CRN1 has a listed 3-star rating and an EER of 2.65 W/W, providing a defined efficiency specification for its cooling operation.
The indoor unit delivers airflow of 2000 / 1800 / 1250 m³/h across its high, medium, and low settings. With a maximum airflow of 2000 m³/h, the system can circulate a substantial amount of conditioned air throughout the occupied area.
This airflow capacity makes the AC suitable for spacious environments where strong air movement is required.
The Midea MUB-60CRN1 uses a rotary compressor with LAMDA specified as the compressor brand. It operates with R410 refrigerant and has a listed refrigerant charge of 3.4 KG.
The unit has a standard power input of 6500 W and a maximum rated input of 8500 W, supporting its high-capacity cooling configuration.
The MUB-60CRN1 is designed for a 380–410V, 3-phase, 50Hz power supply. This makes it appropriate for commercial properties and other locations equipped with a compatible three-phase electrical system.
The electrical installation should be checked by a qualified professional before commissioning the unit.
The MUB-60CRN1 includes remote controller support, allowing users to conveniently manage the cooling operation, temperature settings, and other available functions from a distance.
The specified refrigerant piping includes a 3/8-inch liquid pipe and 3/4-inch gas pipe. The system uses an OD 25.4 drain pipe for condensate drainage.
The Midea MUB-60CRN1 5 Ton Ceiling Type AC can be used in various large indoor environments, including:
What is the cooling capacity of the Midea MUB-60CRN1?
The MUB-60CRN1 has a cooling capacity of 60,000 BTU/H, equivalent to approximately 5 tons of cooling.
Is the Midea MUB-60CRN1 an inverter AC?
No. It uses On-Off non-inverter technology.
Does this model provide heating?
No. The MUB-60CRN1 is a cooling-only air conditioner.
What type of compressor does it use?
The unit uses a rotary compressor, with LAMDA listed as the compressor brand.
Which refrigerant is used?
The AC uses R410 refrigerant, with a specified refrigerant charge of 3.4 KG.
What is the maximum indoor airflow?
The maximum indoor airflow is 2000 m³/h. The available airflow levels are 2000, 1800, and 1250 m³/h.
What power supply does the MUB-60CRN1 require?
It requires a 380–410V, 3-phase, 50Hz power supply.
