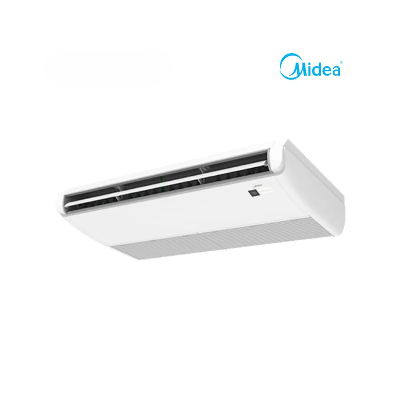

The Midea MUB-36CRN1 3 Ton Ceiling Type Non-Inverter Air Conditioner is designed to provide powerful and consistent cooling for large rooms, offices, commercial spaces, and other areas that require high-capacity air conditioning. With a 36,000 BTU/H cooling capacity, ceiling-type design, and strong airflow of up to 1800 m³/h, it is suitable for demanding cooling applications.
This cooling-only AC uses an On-Off technology, GMCC rotary compressor, and R-410A refrigerant. Its 380-415V, 3-phase, 50Hz power supply makes it suitable for commercial and larger-scale installations. A remote controller provides convenient operation and temperature adjustment.
| Indoor Model | MUB-36CRN1 |
|---|---|
| Outdoor Model | MUB-36CRN1 |
| AC Type | Ceiling Type |
| Technology | On-Off |
| Operation | Cooling Only |
| Power Supply | 380-415V, 3Ph, 50Hz |
| Cooling Capacity | 36,000 BTU/H |
|---|---|
| Cooling Input | 4000 W |
| Rated Current | 8.2 A |
| Maximum Input Consumption | 5350 W |
| Maximum Current | 11.7 A |
| EER | 2.77 W/W |
| EER | 9.46 (BTU/Hr)/W |
| Refrigerant Type | R-410A |
|---|---|
| Compressor Type | Rotary |
| Compressor Brand | GMCC |
| Controller Type | Remote Controller |
|---|---|
| Operation Temperature | 17-30°C |
| Indoor Air Flow (Hi/Mi/Lo) | 1800/1500/1300 m³/h |
|---|---|
| Indoor Noise Level (Hi/Mi/Lo) | 53.4/49.7/47.3 dB(A) |
| Outdoor Noise Level | 62.6 dB(A) |
| Indoor Unit Size | 1285×675×235 mm |
|---|---|
| Indoor Packing Size | 1360×755×313 mm |
| Outdoor Unit Size | 946×410×810 mm |
| Outdoor Packing Size | 1090×500×875 mm |
| Compressor Warranty | 3 Years |
|---|---|
| Spare Parts Warranty | 1 Year |
| Free Service Warranty | 1 Year |
The Midea MUB-36CRN1 3 Ton AC delivers a cooling capacity of 36,000 BTU/H, making it suitable for large rooms and commercial environments where standard residential air conditioners may not provide sufficient cooling. Its high-capacity cooling system is designed to distribute cool air effectively across larger spaces.
With a 4000 W cooling input and a maximum input consumption of 5350 W, the unit is designed for demanding cooling applications.
The ceiling-type configuration provides an alternative to conventional wall-mounted air conditioners. The indoor unit measures 1285×675×235 mm, allowing it to be installed as part of a ceiling-based air-conditioning setup.
This design is particularly useful in commercial interiors where efficient air distribution and practical use of wall space are important considerations.
The MUB-36CRN1 uses On-Off technology rather than inverter operation. The compressor operates according to the cooling requirement, making this model a practical choice for users looking for a straightforward cooling-only air-conditioning system.
It is designed specifically for cooling and does not include a heating operation.
The Midea MUB-36CRN1 provides three indoor airflow levels:
This airflow capacity helps move cooled air throughout larger spaces. Users can select the appropriate fan speed according to their comfort and cooling requirements.
A GMCC rotary compressor powers the cooling system of the MUB-36CRN1. The rotary compressor works with R-410A refrigerant to provide the required cooling performance.
The combination of a rotary compressor and R-410A refrigerant makes the system suitable for applications requiring high-capacity cooling.
The air conditioner uses R-410A refrigerant as its refrigerant type. This refrigerant works with the cooling system to transfer heat and provide the required cooling performance.
The MUB-36CRN1 requires a 380-415V, 3-phase, 50Hz power supply. This makes the unit particularly suitable for commercial locations and installations where three-phase electrical power is available.
Before installation, the electrical requirements should be checked to ensure compatibility with the site's power infrastructure.
1. What is the cooling capacity of the Midea MUB-36CRN1?
The Midea MUB-36CRN1 has a 36,000 BTU/H cooling capacity, equivalent to a 3 Ton air-conditioning capacity.
2. Is the Midea MUB-36CRN1 an inverter AC?
No. The MUB-36CRN1 uses On-Off technology, so it is a non-inverter air conditioner.
3. Does this model support heating?
No. The Midea MUB-36CRN1 is a cooling-only air conditioner.
4. What type of compressor does it use?
The unit uses a GMCC rotary compressor.
5. Which refrigerant does the MUB-36CRN1 use?
The air conditioner uses R-410A refrigerant.
6. What power supply is required?
The MUB-36CRN1 requires a 380-415V, 3-phase, 50Hz power supply.
7. What is the maximum indoor airflow?
The maximum indoor airflow is 1800 m³/h at high fan speed.
