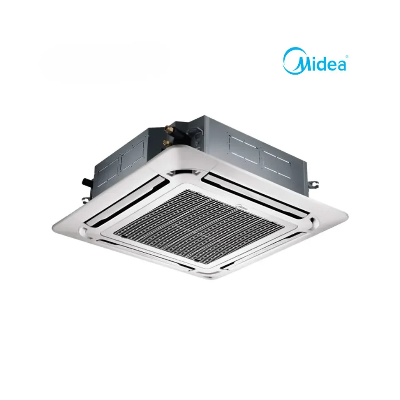

The Midea MCA-36CRN1 3 Ton Cassette Type Non-Inverter AC is a high-capacity cooling solution designed for offices, shops, showrooms, restaurants, commercial spaces, and other large indoor environments. With a 36,000 BTU/H cooling capacity, this cassette AC provides powerful cooling through a ceiling-mounted indoor unit while maintaining an organized and space-efficient interior.
Powered by a GMCC rotary compressor and R-410A refrigerant, the MCA-36CRN1 delivers up to 1800 m³/h indoor airflow. Its On-Off non-inverter operation, remote controller, and 380-415V 3-phase, 50Hz power supply make it a practical choice for commercial installations requiring high-capacity cooling.
| Indoor Model | MCA-36CRN1 |
|---|---|
| Outdoor Model | MCA-36CRN1 |
| AC Type | Cassette Type |
| Technology | On-Off / Non-Inverter |
| Operation | Cooling Only |
| Power Supply | 380-415V, 3Ph, 50Hz |
| Cooling Capacity | 36,000 BTU/H |
|---|---|
| Standard Current | 8.2 A |
| Standard Input | 4000 W |
| Rated Current (Max Current) | 11.7 A |
| Rated Input (Max Input) | 5350 W |
| EER | 2.78 W/W |
| EER | 9.98 (BTU/Hr)/W |
| Refrigerant Type | R-410A |
|---|---|
| Compressor Type | Rotary |
| Compressor Brand | GMCC |
| Controller Type | Remote Controller |
|---|---|
| Operation Temperature | 17-30°C |
| Indoor Air Flow (Hi/Mi/Lo) | 1800/1500/1300 m³/h |
|---|---|
| Indoor Noise Level (Hi/Mi/Lo) | 53/50/47 dB(A) |
| Outdoor Noise Level | 62.6 dB(A) |
| Indoor Unit Size | 840×840×245 mm |
|---|---|
| Indoor Packing Size | 900×900×265 mm |
| Panel Dimension | 950×55×950 mm |
| Panel Packing Dimension | 1035×90×1035 mm |
| Outdoor Unit Size | 946×410×810 mm |
| Outdoor Packing Size | 1090×500×875 mm |
| Compressor Warranty | 3 Years |
|---|---|
| Spare Parts Warranty | 1 Year |
| Free Service Warranty | 1 Year |
The Midea MCA-36CRN1 3 Ton Cassette AC delivers a cooling capacity of 36,000 BTU/H, making it suitable for larger indoor areas that require strong and consistent cooling. Its high-capacity cooling system is designed for commercial and professional environments where conventional wall-mounted ACs may not provide the desired installation flexibility.
With a standard cooling input of 4000 W, the unit is built to provide substantial cooling performance for demanding applications.
The cassette-type configuration is designed for ceiling installation, helping maintain a clean and organized appearance inside commercial spaces. The indoor unit measures 840×840×245 mm, while the panel measures 950×55×950 mm.
The ceiling-mounted design keeps the main indoor unit integrated into the ceiling structure and allows the surrounding space to remain available for furniture, displays, equipment, and other interior requirements.
A cassette air conditioner is particularly useful when cooling needs to be distributed across a wider indoor area. The Midea MCA-36CRN1 is designed as a ceiling-based cooling solution for spaces where centralized-looking air distribution is preferred.
Its high airflow capacity helps circulate cooled air throughout the occupied area.
The MCA-36CRN1 offers three indoor fan-speed airflow levels:
This airflow range provides flexibility for different cooling requirements. The higher airflow setting can be used when faster air circulation is needed, while lower settings can be selected for more moderate operation.
The air conditioner is equipped with a GMCC rotary compressor. The compressor works with the system's R-410A refrigerant to deliver the required cooling performance.
The combination of a rotary compressor and high-capacity cooling system makes the MCA-36CRN1 suitable for commercial environments requiring a dedicated cooling solution.
The Midea MCA-36CRN1 uses R-410A refrigerant. The refrigerant works within the air-conditioning system to support the heat-transfer process required for cooling.
The MCA-36CRN1 uses On-Off / Non-Inverter technology. Unlike inverter models that continuously vary compressor operation, an On-Off system operates the compressor according to the cooling cycle.
This makes the model a straightforward option for users who specifically require a non-inverter commercial cassette air conditioner.
The Midea MCA-36CRN1 operates on a 380-415V, 3-phase, 50Hz power supply. This electrical configuration is commonly suited to commercial locations with appropriate three-phase infrastructure.
The electrical supply should be verified before installation to ensure compatibility with the building's electrical system.
The included remote controller provides convenient access to the air conditioner's operating functions. Users can control the AC without directly accessing the ceiling-mounted indoor unit.
The specified operating temperature range for the unit is 17-30°C.
1. What is the cooling capacity of the Midea MCA-36CRN1?
The Midea MCA-36CRN1 has a 36,000 BTU/H cooling capacity and is rated as a 3 Ton air conditioner.
2. Is the Midea MCA-36CRN1 an inverter AC?
No. The MCA-36CRN1 uses On-Off / Non-Inverter technology.
3. What type of AC is the MCA-36CRN1?
It is a Cassette Type air conditioner designed for ceiling installation.
4. Does this AC support heating?
No. The MCA-36CRN1 is designed for cooling-only operation.
5. What compressor does the Midea MCA-36CRN1 use?
It uses a GMCC rotary compressor.
6. Which refrigerant is used in this model?
The MCA-36CRN1 uses R-410A refrigerant.
7. What is the power supply requirement?
The AC requires a 380-415V, 3-phase, 50Hz power supply.
