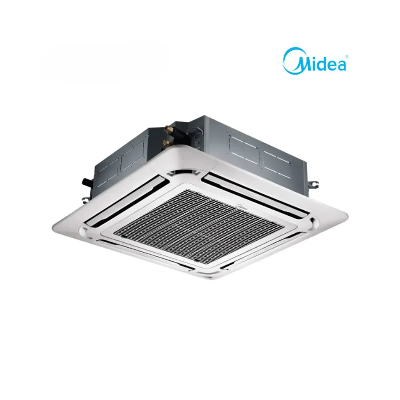

Midea 2.5 Ton Cassette Type Non-Inverter AC – MCA-30CRN1

The Midea MCA-30CRN1 2.5 Ton Cassette Type Non-Inverter AC is a high-capacity cooling solution designed for commercial and large indoor spaces. With a 30,000 BTU/H cooling capacity, cassette-type ceiling installation, and airflow of up to 1700 m³/h, it is suitable for areas that require strong and consistent cooling.

This cooling-only air conditioner uses On-Off non-inverter technology, a GMCC rotary compressor, and R410A refrigerant. It operates with a 187-264V, 1-phase, 50Hz power supply and includes a remote controller for convenient operation.

Key Features

• 30,000 BTU/H cooling capacity
• Cassette-type ceiling design
• Non-inverter On-Off cooling operation
• 3400 W standard cooling input
• 1700/1500/1400 m³/h indoor airflow
• GMCC rotary compressor
• R410A refrigerant
• Cooling-only operation
• Remote controller included
• 187-264V, 1-phase, 50Hz power supply
• Designed for commercial and large indoor spaces

Specification

Basic Information

Cooling Performance

Refrigerant & Compressor

Controller & Operating Details

Airflow

Official Warranty

Description

30,000 BTU/H High-Capacity Cooling

The Midea MCA-30CRN1 2.5 Ton AC delivers 30,000 BTU/H of cooling capacity, making it suitable for larger rooms and commercial environments that require more cooling power than conventional residential air conditioners.

Its 3400 W standard input supports the system's high-capacity cooling operation, making it a practical choice for offices, retail spaces, restaurants, showrooms, and other areas where dependable cooling is important.

Cassette Type Ceiling Design

The cassette-type design allows the indoor unit to be integrated into a ceiling-based installation. This approach can help maintain a clean interior appearance while making efficient use of the available wall space.

A ceiling-mounted cassette AC is particularly suitable for commercial interiors where furniture, displays, shelving, or equipment may occupy the walls.

Non-Inverter On-Off Operation

The MCA-30CRN1 uses On-Off non-inverter technology. The system is designed specifically for cooling and does not provide a heating function.

This straightforward operating configuration makes the model suitable for users looking for a dedicated cooling-only cassette air conditioner without inverter technology.

Strong Airflow Performance

The Midea MCA-30CRN1 provides indoor airflow at three fan-speed levels:

• High: 1700 m³/h
• Medium: 1500 m³/h
• Low: 1400 m³/h

The airflow range helps circulate cooled air through the indoor space and provides flexibility for different cooling requirements.

GMCC Rotary Compressor

The air conditioner is equipped with a GMCC rotary compressor. The compressor is designed to work with the system's R410A refrigerant to support the required cooling performance.

The combination of a high-capacity cooling system and rotary compressor makes the MCA-30CRN1 suitable for demanding commercial cooling applications.

R410A Refrigerant

The MCA-30CRN1 uses R410A refrigerant for its cooling system. The refrigerant participates in the heat-transfer cycle that allows the air conditioner to remove heat from the indoor environment.

Single-Phase Power Supply

Unlike larger models requiring three-phase electricity, the Midea MCA-30CRN1 operates on a 187-264V, 1-phase, 50Hz power supply.

This configuration can make the model suitable for locations where compatible single-phase electrical power is available. The site's electrical capacity should always be checked before installation.

Applications

The Midea MCA-30CRN1 2.5 Ton Cassette Type AC can be suitable for various commercial and larger indoor environments, including:

• Offices
• Retail shops
• Showrooms
• Restaurants
• Cafés
• Conference rooms
• Meeting rooms
• Commercial halls
• Educational facilities
• Clinics and business premises
• Large residential areas
• Other spaces requiring high-capacity cooling

Frequently Asked Questions

1. What is the cooling capacity of the Midea MCA-30CRN1?
The Midea MCA-30CRN1 has a 30,000 BTU/H cooling capacity and is rated as a 2.5 Ton air conditioner.

2. Is the MCA-30CRN1 an inverter AC?
No. The MCA-30CRN1 is a non-inverter air conditioner that uses On-Off technology.

3. What type of AC is the MCA-30CRN1?
It is a Cassette Type air conditioner designed for ceiling-based installation.

4. Does this model provide heating?
No. The MCA-30CRN1 is designed for cooling-only operation.

5. What type of compressor does it use?
The air conditioner uses a GMCC rotary compressor.

6. Which refrigerant is used in the MCA-30CRN1?
The model uses R410A refrigerant.

7. What is the required power supply?
The MCA-30CRN1 requires a 187-264V, 1-phase, 50Hz power supply.
