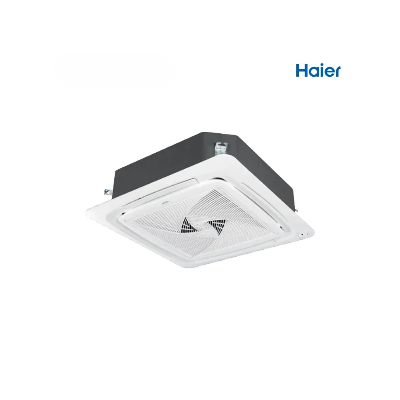

The Haier HSU-30CassetteType (Fix) is a 2.5 Ton fixed-speed cassette-type LCAC designed to deliver powerful and evenly distributed cooling for commercial and large indoor spaces. With 30,000 BTU/h cooling capacity, 3.66 EER, R32 refrigerant, and airflow of up to 1800 m³/h, this model provides dependable cooling performance. Its round-way air supply, individual flap control, high ceiling mode, and high lift-up drain pump make it a practical choice for offices, shops, restaurants, showrooms, and other commercial environments.
| Specification | Details |
|---|---|
| Brand | Haier |
| Model | HSU-30CassetteType:(Fix) |
| Product Type | Cassette Type LCAC |
| Technology | Fixed Speed |
| Capacity | 2.5 Ton |
| Cooling Capacity | 30,000 BTU/h |
| Heating Capacity | Not Applicable |
| Cooling Power Input | 2460 W |
| EER | 3.66 |
| Cooling Running Current | 10.8 A |
| Power Supply | 1 Phase, 220–240 V, 50 Hz |
| Indoor Airflow | 1800 / 1640 / 1400 / 1095 m³/h |
| Refrigerant | R32 |
| Liquid Pipe Diameter | 9.52 mm |
| Gas Pipe Diameter | 15.88 mm |
| Compressor Type | Rotary |
| Indoor Unit Dimension (W × D × H) | 840 × 840 × 246 mm |
| Indoor Unit Package Dimension | 978 × 978 × 312 mm |
| Indoor Unit Net Weight | 24 kg |
| Indoor Unit Gross Weight | 31 kg |
| Indoor Sound Power Level | 52 / 49 / 46 / 42 dB(A) |
| Outdoor Unit Dimension (W × D × H) | 920 × 372 × 765 mm |
| Outdoor Unit Package Dimension | 1085 × 487 × 843 mm |
| Outdoor Unit Net Weight | 63.5 kg |
| Outdoor Unit Gross Weight | 67 kg |
| Outdoor Sound Power Level | 55 dB(A) |
| HBL Model Name | HSU-30CassetteType:(Fix) |
| IDU Code | AB90S1SR1FA |
| ODU Code | 1U90S1LT1SA |
| Panel Model | PB-950QB |
| Panel Dimensions | 950 × 950 × 50 mm |
| Panel Net Weight | 5.5 kg |
| DC Fan Motor | Yes |
| Large Heat Exchanger Design | Yes |
| Multiple Air Speed | Yes |
| Hidden LED Display | Yes |
| Automatic Airflow Control | Yes |
| Installation Friendly | Yes |
| Convenient Filters | Yes |
| Energy Saving | Yes |
| Super Big Inlet Grille | Yes |
| Brand New Designed Fan | Yes |
| Individual Flap Control | Yes |
| High Ceiling Mode | Yes |
| Round Way Air Supply | Yes |
| High Lift-up Drain Pump | Yes |
The Haier HSU-30CassetteType (Fix) delivers 30,000 BTU/h of cooling capacity, making it a suitable choice for commercial environments and larger indoor areas that require reliable air conditioning.
Its cassette-type configuration allows the indoor unit to be installed within the ceiling area, providing a clean appearance while allowing cooled air to be distributed across the space.
With an EER of 3.66, this Haier 2.5 Ton cassette AC is designed to provide effective cooling while maintaining efficient electrical performance. The fixed-speed system delivers dependable operation for applications where consistent cooling is the primary requirement.
The unit has a rated cooling power input of 2460 W and operates on a 1-phase 220–240 V, 50 Hz power supply.
The indoor unit provides four airflow levels of 1800, 1640, 1400, and 1095 m³/h. Multiple fan speeds allow users to adjust the airflow according to room conditions and comfort requirements.
The DC fan motor further supports controlled and efficient airflow operation.
The Round Way Air Supply design helps distribute conditioned air across multiple directions from the ceiling-mounted indoor unit. This makes the system particularly useful in commercial environments where balanced air circulation is important.
The Individual Flap Control feature allows airflow from different outlet sections to be adjusted independently. This provides greater flexibility when directing cool air throughout the room.
For commercial spaces with elevated ceilings, the High Ceiling Mode helps optimize airflow operation according to the installation environment. This makes the unit more adaptable to different commercial building configurations.
The integrated High Lift-up Drain Pump provides greater flexibility for condensate drainage during installation. This can be particularly useful in ceiling-mounted applications where the drainage arrangement requires additional lift.
The HSU-30CassetteType (Fix) uses R32 refrigerant, providing a modern refrigerant solution for its cooling system. The combination of R32 and the 3.66 EER rating makes this model a practical option for commercial cooling requirements.
The unit features a large heat exchanger design along with automatic airflow control. These features are designed to support effective heat exchange and convenient air distribution during operation.
What is the cooling capacity of the Haier HSU-30CassetteType (Fix)?
The unit has a 30,000 BTU/h cooling capacity, equivalent to approximately 2.5 Ton.
Is this Haier cassette AC an inverter model?
No. The HSU-30CassetteType (Fix) is a fixed-speed cassette-type LCAC.
What is the EER of this model?
The Haier HSU-30CassetteType (Fix) has an EER of 3.66.
What refrigerant does this AC use?
This model uses R32 refrigerant.
What is the airflow capacity?
The indoor unit offers four airflow levels: 1800 / 1640 / 1400 / 1095 m³/h.
Does this model provide round-way airflow?
Yes. The cassette indoor unit features a Round Way Air Supply system for multi-directional air distribution.
Can the airflow direction be adjusted individually?
Yes. The unit features Individual Flap Control, allowing greater flexibility in directing airflow.
