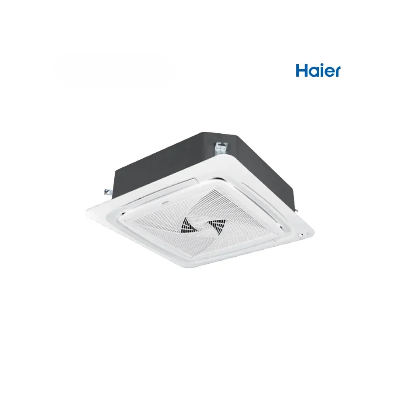

The Haier HSU-36CassetteType (Fix) is a 3 Ton fixed-speed cassette-type LCAC designed for powerful and reliable cooling in commercial and large indoor spaces. With a 36,000 BTU/h cooling capacity, 3.18 EER, R32 refrigerant, and airflow of up to 2080 m³/h, this model delivers strong cooling performance with flexible airflow control. Its round-way air supply, individual flap control, high ceiling mode, and high lift-up drain pump make it a practical choice for offices, showrooms, restaurants, retail spaces, and other commercial applications.
| Specification | Details |
|---|---|
| Brand | Haier |
| HBL Model Name | HSU-36CassetteType:(Fix) |
| Product Type | Cassette Type LCAC |
| Technology | Fixed Speed |
| Capacity | 3 Ton |
| Cooling Capacity | 36,000 BTU/h |
| Heating Capacity | Not Applicable |
| Cooling Power Input | 3300 W |
| EER | 3.18 |
| Cooling Running Current | 5.32 A |
| Power Supply | 3 Phase, 380–415 V, 50 Hz |
| Indoor Airflow | 2080 / 1780 / 1580 / 1400 m³/h |
| Moisture Removal Capacity | 2 L/H |
| Refrigerant | R32 |
| Liquid Pipe Diameter | 9.52 mm |
| Gas Pipe Diameter | 15.88 mm |
| Compressor Type | Rotary |
| Indoor Unit Dimension (W × D × H) | 840 × 840 × 246 mm |
| Indoor Unit Package Dimension | 978 × 978 × 312 mm |
| Indoor Unit Net Weight | 25 kg |
| Indoor Unit Gross Weight | 30.5 kg |
| Indoor Sound Power Level | 53 / 50 / 47 / 43 dB(A) |
| Outdoor Unit Dimension (W × D × H) | 950 × 370 × 965 mm |
| Outdoor Unit Package Dimension | 1050 × 485 × 1095 mm |
| Outdoor Unit Net Weight | 74 kg |
| Outdoor Unit Gross Weight | 85 kg |
| Outdoor Sound Power Level | 59 dB(A) |
| IDU Code | AB105S1SR1FA |
| ODU Code | 1U105S1LN1SB |
| Panel Model | PB-950QB |
| Panel Dimensions | 950 × 950 × 50 mm |
| Panel Packing Dimensions | 1000 × 1000 × 110 mm |
| Panel Net Weight | 5.5 kg |
| Panel Gross Weight | 8.5 kg |
| DC Fan Motor | Yes |
| Large Heat Exchanger Design | Yes |
| Multiple Air Speed | Yes |
| Hidden LED Display | Yes |
| Automatic Airflow Control | Yes |
| Installation Friendly | Yes |
| Convenient Filters | Yes |
| Energy Saving | Yes |
| Super Big Inlet Grille | Yes |
| Brand New Designed Fan | Yes |
| Individual Flap Control | Yes |
| High Ceiling Mode | Yes |
| Round Way Air Supply | Yes |
| High Lift-up Drain Pump | Yes |
The Haier HSU-36CassetteType (Fix) delivers a substantial 36,000 BTU/h cooling capacity, making it suitable for commercial spaces and larger indoor environments that require dependable air conditioning.
Its cassette-type indoor design is intended for ceiling installation, allowing the AC to provide effective air distribution while maintaining a clean and integrated appearance.
This Haier 3 Ton cassette AC features a 3.18 EER, providing an efficient approach to high-capacity cooling. The fixed-speed system is designed for straightforward and dependable operation in commercial environments where consistent cooling performance is important.
The unit has a 3300 W cooling power input and operates with a 3-phase 380–415 V, 50 Hz power supply.
The indoor unit provides four airflow settings: 2080, 1780, 1580, and 1400 m³/h. These multiple speed options allow users to select an airflow level according to the cooling requirements of the environment.
The integrated DC fan motor supports controlled airflow operation, while automatic airflow control helps simplify everyday use.
The Round Way Air Supply design distributes cooled air in multiple directions from the ceiling-mounted cassette unit. This arrangement helps provide broader air coverage throughout the room.
It is particularly useful for commercial layouts where occupants and equipment may be positioned across different areas of the space.
With Individual Flap Control, different air outlets can be adjusted according to the requirements of the room. This provides greater flexibility when directing cool air and managing airflow distribution.
Commercial buildings may have ceiling heights that differ significantly from standard residential rooms. The High Ceiling Mode provides an operating option designed for higher-ceiling environments, helping adapt the air distribution to the installation conditions.
The built-in High Lift-up Drain Pump provides additional flexibility when routing condensate water from the ceiling-mounted indoor unit. This feature can simplify drainage planning during installation where additional lift is required.
The HSU-36CassetteType (Fix) uses R32 refrigerant, offering a modern refrigerant solution for its cooling system. The refrigerant works with the rotary compressor to deliver the required cooling performance.
A large heat exchanger design is included to support heat exchange performance during operation. Combined with multiple fan speeds and automatic airflow control, it contributes to the overall cooling system design.
The Haier 3 Ton Fixed Speed Cassette Type LCAC is suitable for a wide range of commercial and large indoor applications, including:
What is the cooling capacity of the Haier HSU-36CassetteType (Fix)?
The air conditioner has a 36,000 BTU/h cooling capacity, equivalent to 3 Ton.
Is this model an inverter AC?
No. The HSU-36CassetteType (Fix) is a fixed-speed cassette-type LCAC.
What is the EER of this Haier 3 Ton cassette AC?
The model has an EER of 3.18.
What refrigerant does it use?
The air conditioner uses R32 refrigerant.
What is the airflow capacity?
The indoor unit provides four airflow levels: 2080 / 1780 / 1580 / 1400 m³/h.
Does the unit have round-way airflow?
Yes. It features Round Way Air Supply to distribute conditioned air in multiple directions.
