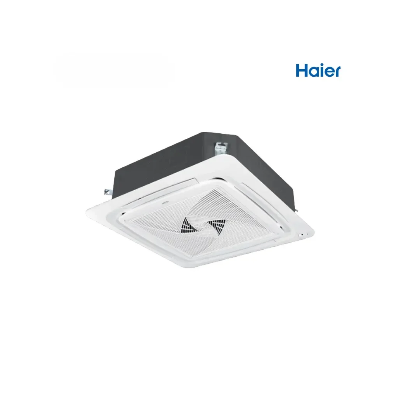

The Haier HSU-48CassetteType (Fix) is a powerful 4 Ton fixed-speed cassette-type LCAC designed for commercial and large indoor cooling applications. It provides 48,000 BTU/h cooling capacity, a 3.1 EER, and up to 2170 m³/h airflow through multiple fan-speed settings. The unit uses R32 refrigerant and features round-way air supply, individual flap control, high ceiling mode, and a high lift-up drain pump for flexible commercial installation. It also comes with 5 years compressor, 2 years parts, and 2 years service warranty.
| Specification | Details |
|---|---|
| Brand | Haier |
| HBL Model Name | HSU-48CassetteType:(Fix) |
| Product Type | Cassette Type LCAC |
| Technology | Fixed Speed |
| Capacity | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| Heating Capacity | Not Applicable |
| Cooling Power Input | 4550 W |
| EER | 3.1 |
| Cooling Running Current | 7.33 A |
| Power Supply | 3 Phase, 380–415 V, 50 Hz |
| Indoor Airflow | 2170 / 2010 / 1730 / 1450 m³/h |
| Moisture Removal Capacity | 2 L/H |
| Refrigerant | R32 |
| Liquid Pipe Diameter | 9.52 mm |
| Gas Pipe Diameter | 15.88 mm |
| Compressor Type | Rotary |
| Indoor Unit Dimension (W × D × H) | 840 × 840 × 288 mm |
| Indoor Unit Package Dimension | 978 × 978 × 353 mm |
| Indoor Unit Net Weight | 27 kg |
| Indoor Unit Gross Weight | 33 kg |
| Indoor Sound Power Level | 54 / 51 / 48 / 44 dB(A) |
| Outdoor Unit Dimension (W × D × H) | 950 × 370 × 1350 mm |
| Outdoor Unit Package Dimension | 1050 × 485 × 1500 mm |
| Outdoor Unit Net Weight | 91 kg |
| Outdoor Unit Gross Weight | 105 kg |
| Outdoor Sound Power Level | 60 dB(A) |
| IDU Code | AB140S1SR1FA |
| ODU Code | 1U140S1LP1SB |
| Panel Model | PB-950QB |
| Panel Dimensions | 950 × 950 × 50 mm |
| Panel Packing Dimensions | 1000 × 1000 × 110 mm |
| Panel Net Weight | 5.5 kg |
| Panel Gross Weight | 8.5 kg |
| DC Fan Motor | Yes |
| Large Heat Exchanger Design | Yes |
| Multiple Air Speed | Yes |
| Hidden LED Display | Yes |
| Automatic Airflow Control | Yes |
| Installation Friendly | Yes |
| Convenient Filters | Yes |
| Energy Saving | Yes |
| Super Big Inlet Grille | Yes |
| Brand New Designed Fan | Yes |
| Individual Flap Control | Yes |
| High Ceiling Mode | Yes |
| Round Way Air Supply | Yes |
| High Lift-up Drain Pump | Yes |
| Compressor Warranty | 5 Years |
| Parts Warranty | 2 Years |
| Service Warranty | 2 Years |
The Haier HSU-48CassetteType (Fix) is a 4 Ton commercial cassette AC designed to deliver strong cooling performance in large indoor environments. With a 48,000 BTU/h cooling capacity, it can provide the high cooling output required for commercial spaces where standard residential air conditioners may not be sufficient.
The ceiling cassette format also helps maintain a clean interior appearance while distributing conditioned air across the room.
The HSU-48CassetteType (Fix) offers a 3.1 EER along with a 4550 W cooling power input. Its fixed-speed design provides straightforward and dependable cooling operation for commercial applications.
The unit requires a 3-phase 380–415 V, 50 Hz power supply, making it appropriate for commercial locations equipped with compatible electrical infrastructure.
The indoor unit offers four airflow levels:
Multiple airflow settings provide flexibility to adjust air circulation according to the requirements of the indoor environment.
The integrated DC fan motor and automatic airflow control further support convenient operation.
The Round Way Air Supply system is designed to distribute cool air in multiple directions from the ceiling-mounted cassette. This helps provide broader air coverage throughout commercial spaces.
The design is particularly useful in rooms where occupants, furniture, displays, or workstations are positioned across different areas.
The Individual Flap Control feature provides greater flexibility over the direction of airflow from the cassette outlets. Different sections can be adjusted to help direct cooled air where it is required.
This makes the system adaptable to different commercial room layouts.
The HSU-48CassetteType (Fix) includes a High Ceiling Mode for spaces with higher ceilings. This feature helps adapt the airflow operation to different installation conditions, making the AC suitable for a variety of commercial building designs.
A High Lift-up Drain Pump is built into the system to provide greater flexibility when arranging condensate drainage. This can be particularly useful for ceiling installations where the drainage route requires additional lift.
The unit uses R32 refrigerant, providing a modern refrigerant solution for its cooling system. Combined with the rotary compressor and 3.1 EER, it is designed to deliver reliable cooling for demanding commercial applications.
What is the cooling capacity of the Haier HSU-48CassetteType (Fix)?
The air conditioner has a 48,000 BTU/h cooling capacity, equivalent to 4 Ton.
Is the Haier HSU-48CassetteType an inverter AC?
No. This model is a fixed-speed cassette-type LCAC.
What is the EER of this 4 Ton Haier cassette AC?
The HSU-48CassetteType (Fix) has an EER of 3.1.
What refrigerant does this AC use?
This model uses R32 refrigerant.
What airflow does the indoor unit provide?
The indoor unit offers four airflow levels: 2170 / 2010 / 1730 / 1450 m³/h.
Does the AC have round-way airflow?
Yes. The unit features Round Way Air Supply for multi-directional air distribution.
