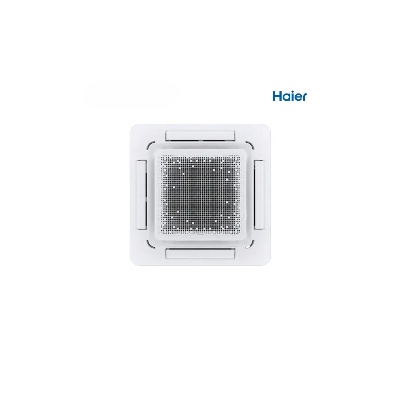

The Haier HSU-48SenseCool (INV) is a high-capacity 4 Ton inverter cassette-type air conditioner designed for commercial and large indoor spaces. With 48,000 BTU/h cooling capacity, R32 refrigerant, a DC fan motor, and advanced airflow control, it delivers powerful and flexible cooling. The system features UVC Plus Sterilization, Frost Self-Clean, built-in WiFi, 3 Step ECO, individual flap control, and round-way air supply, making it a feature-rich solution for modern commercial environments.
| Specification | Details |
|---|---|
| Brand | Haier |
| HBL Model Name | HSU-48SenseCool(INV)(Cassette) |
| Product Type | Cassette Type |
| Technology | Inverter |
| Capacity | 4.0 Ton |
| Cooling Capacity | 48,000 BTU/h |
| Heating Capacity | Not Applicable |
| Cooling Power Input | 5500 W |
| Power Supply | 3 Phase, 380–415 V, 50 Hz |
| Refrigerant | R32 |
| Liquid Pipe Diameter | 9.52 mm |
| Gas Pipe Diameter | 15.88 mm |
| Compressor Type | Rotary |
| Indoor Unit Dimension (W × D × H) | 840 × 840 × 288 mm |
| Indoor Unit Package Dimension | 943 × 943 × 345 mm |
| Indoor Unit Net Weight | 25 kg |
| Indoor Unit Gross Weight | 30.5 kg |
| Indoor Sound Pressure Level | 50 / 47 / 45 / 42 dB(A) |
| Outdoor Unit Dimension (W × D × H) | 950 × 370 × 815 mm |
| Outdoor Unit Package Dimension | 1095 × 480 × 882 mm |
| Outdoor Unit Net Weight | 74 kg |
| Outdoor Unit Gross Weight | 78.5 kg |
| Maximum Outdoor Sound Pressure Level | 57 dB(A) |
| IDU Code | HB140DKALRA |
| ODU Code | 1H140XLASRA |
| Panel Model | HBB-950DB |
| Panel Dimensions | 950 × 950 × 73 mm |
| Panel Packing Dimensions | 1013 × 1035 × 132 mm |
| Panel Net Weight | 6 kg |
| Panel Gross Weight | 9.5 kg |
| UVC Plus Sterilization | Yes |
| WiFi | Yes |
| Frost Self-Clean | Yes |
| 3 Step ECO | Yes |
| DC Fan Motor | Yes |
| Large Heat Exchanger Design | Yes |
| Multiple Air Speed | Yes |
| Automatic Airflow Control | Yes |
| Convenient Filters | Yes |
| Energy Saving | Yes |
| Super Big Inlet Grille | Yes |
| Brand New Designed Fan | Yes |
| Individual Flap Control | Yes |
| High Ceiling Mode | Yes |
| Round Way Air Supply | Yes |
| High Lift-up Drain Pump | Yes |
The Haier HSU-48SenseCool (INV) is a 4 Ton cassette-type inverter AC engineered for high-capacity cooling in commercial and large indoor environments. Its 48,000 BTU/h cooling capacity provides strong cooling output for spaces that require more than a conventional residential air conditioner can deliver.
The ceiling cassette design allows the indoor unit to integrate neatly into suitable ceiling structures while distributing cooled air across multiple directions.
As an inverter air conditioner, the HSU-48SenseCool (INV) is designed to adjust its cooling operation according to demand. This provides a more flexible approach to maintaining the desired indoor temperature compared with a simple fixed-speed operating system.
The system has a 5500 W cooling power input and requires a 3-phase 380–415 V, 50 Hz electrical supply, making it suitable for commercial installations with compatible power infrastructure.
The air conditioner includes UVC Plus Sterilization as one of its advanced air-treatment features. This feature is designed to support cleaner air-conditioning operation and is an additional feature for environments where air quality is an important consideration.
The Frost Self-Clean function provides a convenient approach to maintaining the indoor heat exchanger. It is designed to assist with cleaning the internal cooling surface through a frost-based cleaning process, helping support routine AC maintenance.
With built-in WiFi, the HSU-48SenseCool (INV) offers connected control capabilities. This provides added convenience for users who want to manage the air conditioner through compatible smart control functionality.
The 3 Step ECO feature provides multiple energy-conscious operating options. It gives users greater flexibility when balancing cooling requirements and energy use during different operating conditions.
The Round Way Air Supply system distributes conditioned air in multiple directions from the ceiling-mounted cassette. This helps provide broad air coverage across the room rather than concentrating airflow in a single direction.
The Individual Flap Control feature allows airflow from different outlets to be adjusted independently. This makes it easier to customize the direction of cooled air according to the layout and occupancy of the commercial space.
The system includes multiple fan-speed settings for flexible cooling operation. Combined with its DC fan motor and automatic airflow control, the system provides convenient control over air circulation.
The HSU-48SenseCool (INV) uses R32 refrigerant and a DC fan motor. Together with the inverter system and large heat exchanger design, these components support the unit's high-capacity cooling operation.
What is the cooling capacity of the Haier HSU-48SenseCool (INV)?
The air conditioner has a 48,000 BTU/h cooling capacity, equivalent to 4.0 Ton.
Is the Haier HSU-48SenseCool an inverter AC?
Yes. The HSU-48SenseCool (INV) uses inverter technology.
What refrigerant does this model use?
The AC uses R32 refrigerant.
Does this model have WiFi?
Yes. The HSU-48SenseCool (INV) has built-in WiFi.
What is UVC Plus Sterilization?
UVC Plus Sterilization is an integrated air-treatment feature included in this model. It is designed to support cleaner operation within the air-conditioning system.
Does this model have a self-cleaning function?
Yes. It features Frost Self-Clean, which is designed to assist with cleaning the indoor heat exchanger.
What is 3 Step ECO?
The 3 Step ECO feature provides multiple energy-conscious operating options for different cooling requirements.
