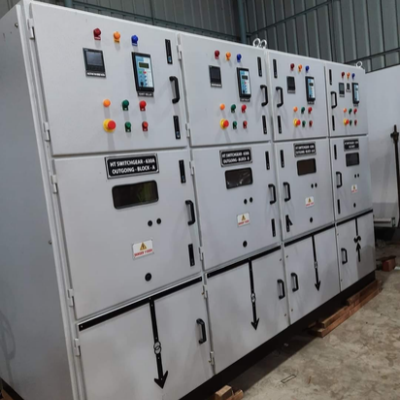

HT Switchgear Panel

The HT Switchgear Panel is designed for high-voltage electrical switching and distribution in substations and industrial power systems. Its metal-clad construction, modular cubicle arrangement, and vacuum circuit breakers support organized equipment installation and electrical system protection.

Key Features

• Metal-clad construction
• Modular cubicle arrangement
• Vacuum circuit breakers
• Voltage range: 3.6–12 kV
• Current range: 630–2500 A
• Short-circuit rating: 20–31.5 kA
• IEC 62271-200 design reference

Specification

Description

High-Voltage Switching and Protection

The HT Switchgear Panel provides a structured solution for switching and protecting electrical circuits in high-voltage distribution systems. It is designed for installations where reliable switching equipment and organized substation layouts are essential.

Modular Metal-Clad Design

The modular cubicle arrangement supports different switchgear configurations. Vacuum circuit breakers provide the switching and interruption function required by the designed electrical protection scheme.

Multiple Electrical Ratings

Voltage, current, and short-circuit ratings can be selected according to project requirements. Proper equipment selection should consider system voltage, expected load, fault levels, protection coordination, and installation conditions.

Why Choose This Product?

• Metal-clad switchgear construction.
• Modular panel arrangement.
• Vacuum circuit breaker technology.
• Multiple electrical rating options.
• Suitable for engineered high-voltage installations.

Applications

• High-voltage substations
• Industrial power distribution
• Manufacturing facilities
• Utility electrical infrastructure
• High-voltage switching systems

FAQ

Q1. What voltage range is listed?
The catalog lists 3.6 kV to 12 kV.

Q2. Which switching technology is used?
Vacuum circuit breakers.

Q3. What is the listed current range?
630 A to 2500 A.

Q4. Which design standard is referenced?
IEC 62271-200.
